If you've ever asked why one tube amp sounds tight and silent while another hums, sags, or loses its bass at higher volume, the answer is usually sitting inside the chassis: the output transformer (OPT). This is the part that takes the high-voltage swing from your power tubes and steps it down to a level your speaker can use — without throwing away the frequencies that make a tube amp sound like a tube amp. How that transformer is engineered inside decides most of what you hear and how long the amp keeps sounding that way.

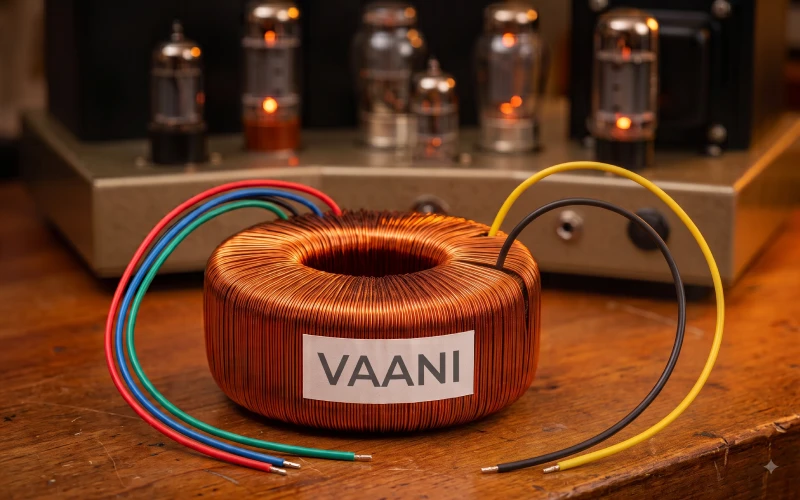

A toroidal OPT built for Push-Pull vacuum tube amplifiers
1. Cleaner, Tighter Bass From a Balanced Amp
In a Push-Pull amplifier, two power tubes share the job of driving your speaker — one pushing while the other pulls. That only works cleanly if the transformer treats both tubes exactly the same way. When an OPT is built with matched, balanced windings for both sides of the primary, both tubes see identical load conditions. The result is an amplifier that stays in balance: less even-harmonic distortion, tighter and more accurate bass, and power tubes that age at the same rate instead of one wearing out faster than the other and throwing your bias out of adjustment.
2. A Silent, Hum-Free Signal Path
Your power tubes run on a high-voltage DC supply (B+), often 350–500V, sitting just millimetres away from the low-level winding that feeds your speaker. Without proper shielding between the two, that high-voltage side can capacitively couple noise straight into your audio path — and you hear it as hum or hiss under the music. A correctly shielded OPT keeps that noise out entirely, so quiet passages stay genuinely quiet, and adds a layer of electrical isolation between your speaker and the amplifier's high-voltage rail for extra peace of mind.
The Bottom Line
An output transformer isn't just a step-down box — it's the last thing your signal touches before it reaches the speaker. Every property built into it, balance, shielding, and core behaviour, shows up directly in how clean, quiet, and reliable your amp sounds.
3. No Buzz, No Hot Spots — Built to Run for Years
A transformer wound with even tension and precisely placed turns runs mechanically silent — there's no loose winding to vibrate and add an audible buzz under your tone. Just as importantly, keeping turns evenly placed layer over layer avoids localized voltage stress between adjacent windings, which is what quietly shortens a transformer's life over years of gigs and long sessions. The payoff for you is an amp that stays quiet at idle and keeps performing the same way after hundreds of hours on stage, not just on day one.
4. Full-Range Bass at Any Volume, No Saturation
Power tube current flows through the primary in two opposite directions in a Push-Pull design, and a continuous, gapless core is what lets those two currents cancel out their DC magnetism instead of building up inside the core. Skip this and the core can saturate under load — which is exactly what causes an amp to "fart out" or lose bass definition the moment you push it. A properly built toroidal core keeps the full frequency range intact from a whisper to full volume, so the low end stays tight instead of collapsing when you need headroom most.
5. Matched to Your Amp, Not a Generic Fit
Every tube amp is a little different — different output tubes, different wiring (standard Push-Pull or Ultra-Linear with screen taps), and different speaker cabinets. A properly specified OPT gives you a center-tap for your B+ supply, a plate connection for each output tube, and secondary taps built for the speaker impedance you're actually driving, whether that's 4Ω, 8Ω, or 16Ω. That means the transformer is built to match your circuit and your cabinet from the start, instead of forcing you to compromise or rewire later.
Final Thoughts
A vacuum tube amplifier's reputation lives or dies by its output transformer — it's the difference between an amp that sounds alive and dynamic and one that hums, sags, or wears out its tubes early. At Vaani, we hand-build toroidal output transformers around your exact circuit: your tube pair, your Push-Pull or Ultra-Linear wiring, and your speaker's impedance, using 100% electrolytic copper windings and CRGO cores for the efficiency and quiet running these amplifiers deserve.
